Wood Frame Assembly Guide

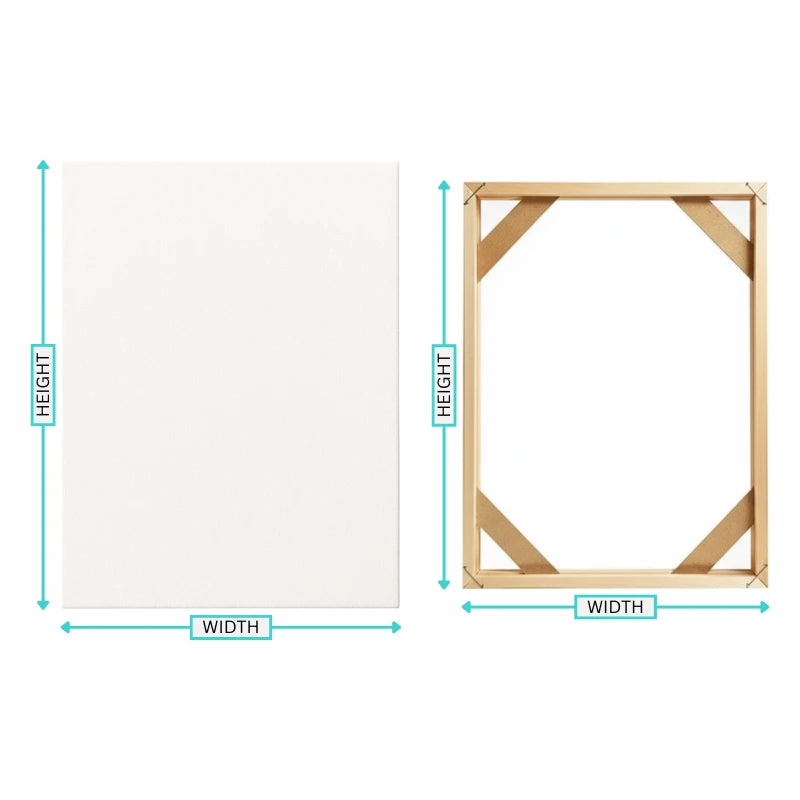

  • Measurement chart showing dimensions of a canvas and a wooden frame on a white background

    Sizing the frame correctly

    When selecting a frame, choose a size that is 5 cm (≈ 2 inches) smaller than your canvas in both width and height. For example, if your canvas size is 40 × 50 cm (16" × 20"), the correct frame size will be 35 × 45 cm (14" × 18").

  • Person using a red pencil to mark a wooden stick on a white background

    Drawing the guidelines

    Start by laying your canvas face down on a clean surface. Using a pencil or marker, draw a guideline along each edge to mark where the frame bars will go. Each bar is 3 cm thick, so the lines you draw should match that exact width.

  • Wooden picture frame being held together by two hands on a white background

    Positioning the wooden bars

    Once the guidelines are marked, place the four wooden bars along the edges of the canvas, aligning them carefully within the lines to form the full frame.

  • Person assembling a wooden frame with white paper on a white background

    Adhering the frame to the canvas

    Peel off the adhesive backing and press each bar firmly onto the canvas, keeping them aligned within the drawn lines. A 0.5 mm gap will remain between each corner for a clean fit.

  • White canvas with a wooden frame and metal stretcher bar on a white background

    Reinforcing the frame corners

    Insert a U-shaped pin into each corner where the bars meet, then lightly tap the wood holders into place using a hammer to add stability.

  • Wooden picture frame with a white mat on a white background

    Attaching the hanging hooks (optional)

    As a final optional step, if you wish to hang the artwork, attach the two hooks using the included screws.
